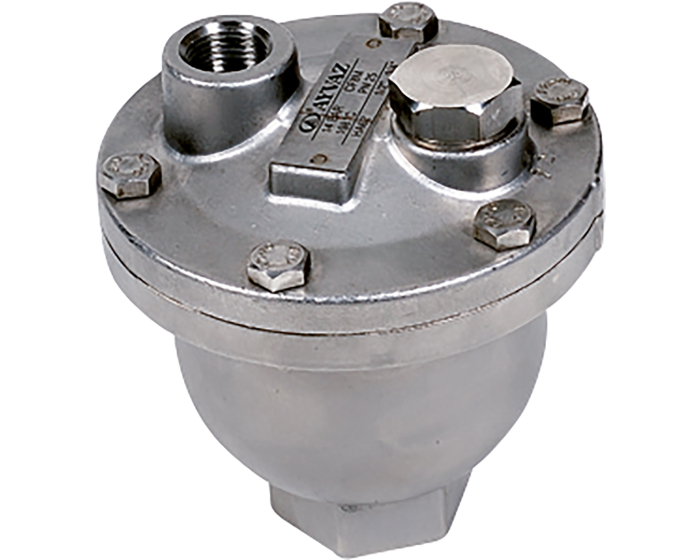

Stainless steel HA62 air vent 3/4''
260.00€
CF8M (1.4408) stainless steel body, stainless steel internal mechanism. TS : -10 / +200°C - PS : 14 bar. Vertical installation. 1/2" vent.
| Specification | Value |
|---|---|
| EVAC Article Nr. | S108167 |
| CE_CERT | CE |
| Connections | BSP FF |
| FILES_3D_PATHS | output/datasheets/154810/32650 |
| Face to Face (mm) | 620.0 |
| In categories | Air vents |
| Body material | Stainless steel CF8M (1.4408) |
| MAAT | 3/4'' |
| Option certificate 3.1 | Yes |
| PS (bar) | 14 |
| SKU | 154810 |
| TS max (°C) | 200 |
| TS min (°C) | -10 |
| Warranty period | 1 year |
| Air vent bore diameter | 1/2'' |
| Delta P (bar) | 14 |
| Trap type | With float |
